Printed Model Test

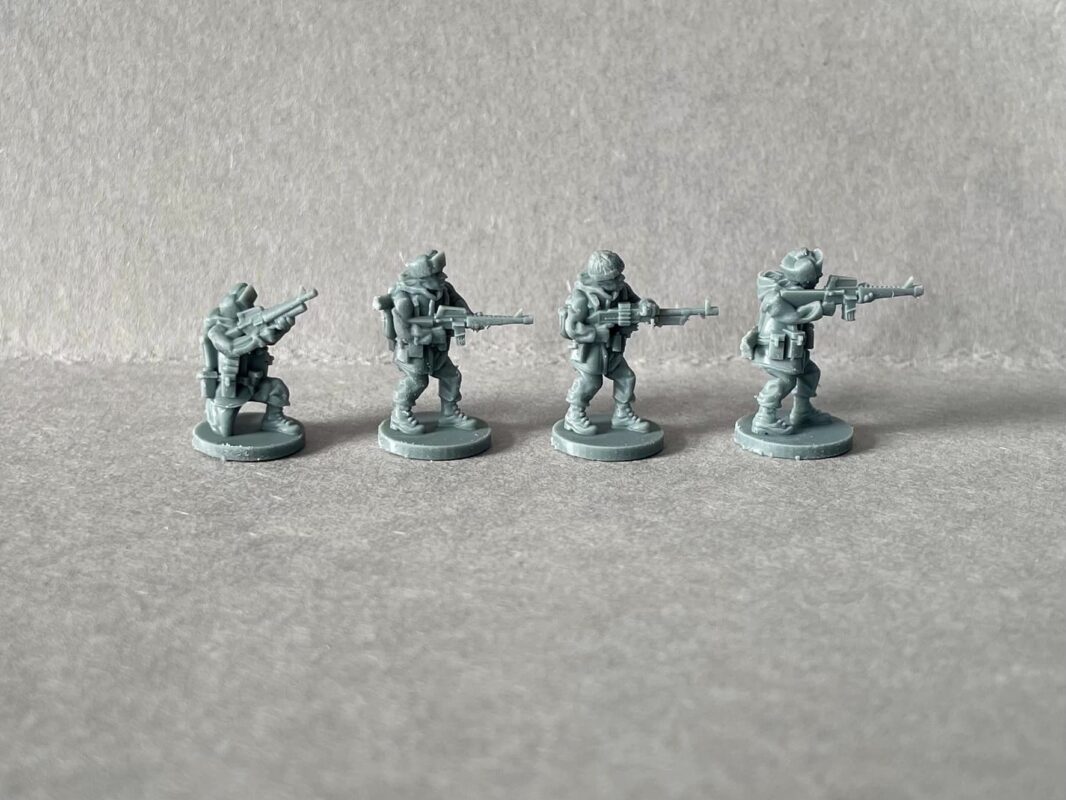

The figures have been printed on an Elegoo Saturn 2 with 8k resin using standard supports.

Sculpting

So to sculpting! For the past 7 years or so I have invested my time in learning Zbrush and have successfully launched a range of STL files on my website. These are US Infantry forces, the Soviet VDV and others – The files are exaggerated for 15mm printable figures. They were tested at 12mm and 20mm and all came out great. I have not tested 10mm prints and barrels might be fragile on some weapons.



Comparison – scaled 20mm 15mm 12mm







They were created with a 3d resin printer in mind. I have tested all the figures on an elegoo Saturn 2 8k and numerous resin 4k printers without issues. They will not be supplied pre-supported as I find that every printer has variances suitable for the printer or the person printing it. I will supply the details of my printer settings and pictures of the support I use. They are all chitubox auto supports with a couple of additional supports on the magazine at times. Also find a free figure to test prints (link below)



Figure for test printing

Please find the link to a free test figure for test printing

https://drive.google.com/file/d/1Tg089K3Tjc3NqR6nXNKRue0vkWW_hyy2/view?usp=sharing

Here are the settings that I successfully print my figures with. I use chitubox slicer and 8k resin from Elegoo. I run the temp at around 25 degrees min.

On importing, I first rotate from 40 to 55 degrees. I used 50 here.

I then use auto-support – light – as per settings.

For rifle magazines, I always make sure that they have some additional support if required.

And that is how I print my 3d files! They may vary per printer and resin!

thanks
